Solar Panel- Waterproof Strip

Plastic, PVC

Features: Effective waterproofing: effectively blocks rainwater infiltration, protects internal wiring and circuit boards; Good UV resistance and weather resistance: suitable for various outdoor climates, not easy to age after long-term exposure; Good elasticity and high tightness: can adjust the fit with different gap sizes; Quick installation: simple structure, can be fixed with pressure strips or pressure blocks; Improve wind pressure resistance: reduce shaking and displacement caused by strong winds; Support customized size/length: meet the needs of different modules and system architectures

Description

This product is designed for solar photovoltaic systems and is installed between solar panels or on the edge of the aluminum frame to effectively prevent rain, dust and wind pressure from invading, thereby improving the weather resistance and safety of the overall system. It has excellent sealing and elasticity, and can stably fit various solar modules. It is suitable for outdoor, rooftop and ground photovoltaic systems.

Applications

Rooftop solar systems
Ground photovoltaic arrays
Solar carport, fish-electricity symbiotic greenhouse
Other solar module installation projects that require waterproof structure design

Customized options

Customized sizes can be made according to the solar module model
Support OEM / ODM project development
Provide sample testing and small batch trial production services

Add Inquiry

Specifications:

Item	Specification
Material	Plastic / PVC
Weather Resistance	UV-resistant, ozone-resistant, temperature resistant (-40°C ~ +100°C)
Sealing Type	Press-fit / Slide-in / Clamp-compatible
Surface Finish	Smooth / Matte / Anti-slip Striped Texture
Standard Width	2.5 cm
Color	Gray
Length Unit	Customizable based on requirements
Packaging	Packed in carton boxes
Flame Retardancy	Optional UL94 V-0 (customizable upon request)
Applicable Modules	Monocrystalline / Polycrystalline / Dual-glass modules (customizable)

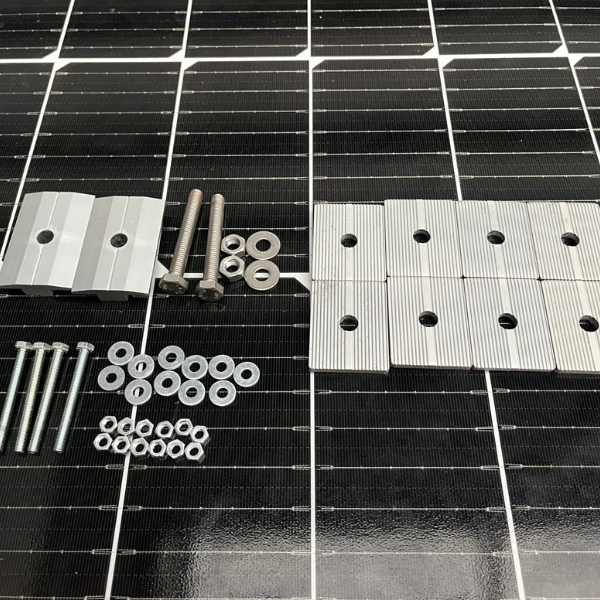

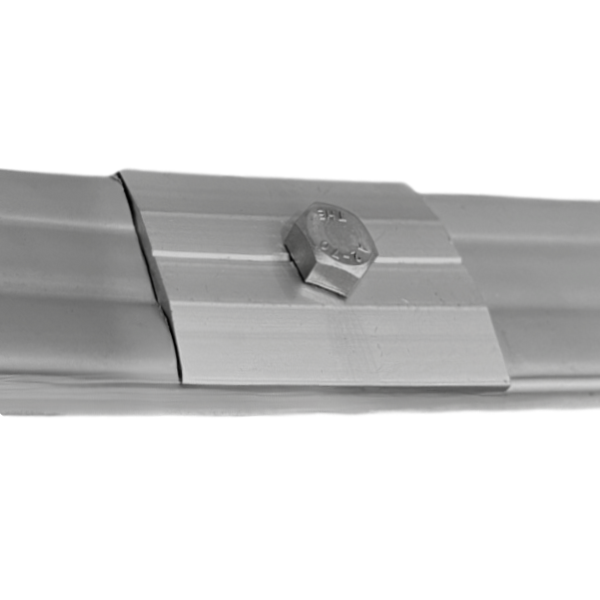

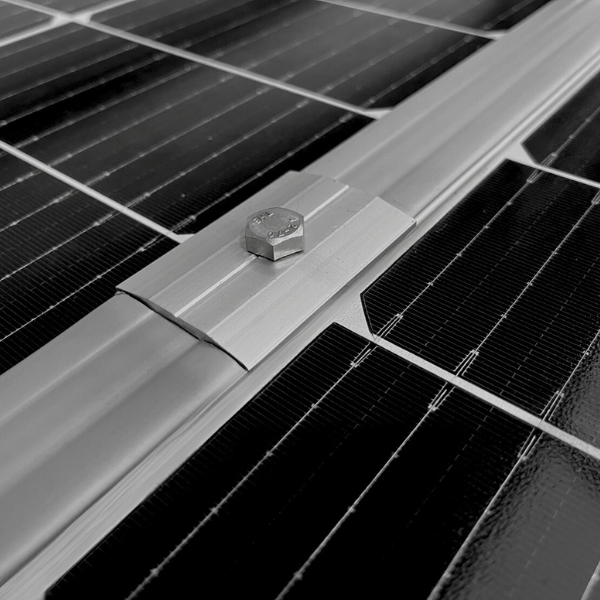

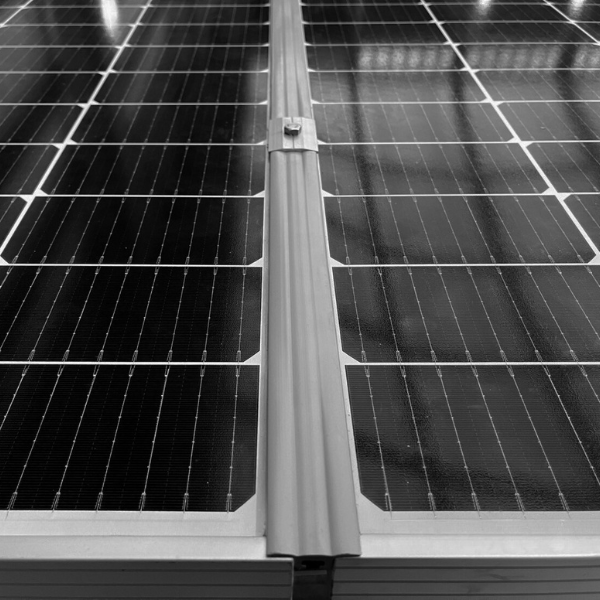

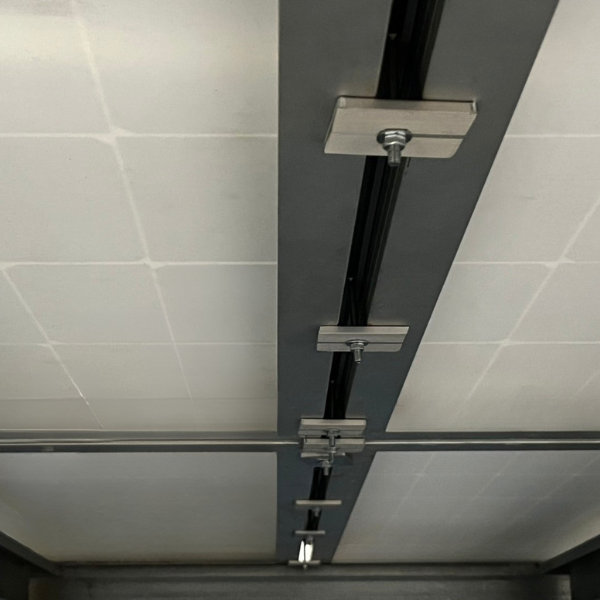

Actual installation:
